たき(@tetsuzawa)です。
この記事はCARTA TECH BLOGアドベントカレンダー 12/3の記事です。
前日は弊社CTOのsuzukenさんのエンジニアリングとキャリアと経営 でした。
pattern queryとは
機械学習の力でログデータを自動的にパターンにクラスター化してくれる機能です。
7月にクエリ自体はリリースされていましたが、11月末にUIがリッチになって直接クエリを叩かなくてもパターンを見ることができるようになりました(リリース)。
実際に見るほうが早いと思うので使用例を示します。
使用例
アプリケーションの構成と生ログ
以下の構成のWebアプリケーションで出力されるログをクエリしてみます。
中身はISUCON13のログです。大きな意味はないのでいろんなパターンでログが吐かれてるんだなーくらいに見ていただけると良いと思います。
※「ISUCON」は、LINEヤフー株式会社の商標または登録商標です。
クライアント -> PowerDNS
-> nginx -> isupipe-go (アプリケーション)
PowerDNSのログ
```jsonl
{"MESSAGE":"Remote 192.168.0.10 wants 'xcs1ol4k3trf4pqiz0.u.isucon.dev|A', do = 0, bufsize = 512"}
{"MESSAGE":"Remote 192.168.0.10 wants '7yqzg751ubgtr50p64hkr60.u.isucon.dev|A', do = 0, bufsize = 512"}
{"MESSAGE":"Remote 192.168.0.10 wants '4ypjo9m3ab5jaobkk9b10.u.isucon.dev|A', do = 0, bufsize = 512"}
{"MESSAGE":"Remote 192.168.0.10 wants 'v2ww3uw32ua1ybsfmp1lam7n0.u.isucon.dev|A', do = 0, bufsize = 512"}
{"MESSAGE":"Remote 192.168.0.10 wants '6iaslyz7knwnr0.u.isucon.dev|A', do = 0, bufsize = 512"}
{"MESSAGE":"Remote 192.168.0.10 wants 'zcn0i0cpoiecjgw7xt8t7nnhbfaygvk0.u.isucon.dev|A', do = 0, bufsize = 512"}
{"MESSAGE":"Remote 192.168.0.10 wants 'q6rhnem740hfmf8ax37arbjblh0.u.isucon.dev|A', do = 0, bufsize = 512"}
{"MESSAGE":"Remote 192.168.0.10 wants 'q67mywtus10.u.isucon.dev|A', do = 0, bufsize = 512"}
{"MESSAGE":"Remote 192.168.0.10 wants 'nj5i9zqc7qsfw3tkpbmmluyph0.u.isucon.dev|A', do = 0, bufsize = 512"}
```
Nginxのaccess.log
```jsonl
{"time":"03/Dec/2023:15:52:06 +0000","host":"135.125.246.110","forwardedfor":"","req":"POST / HTTP/1.1","status":"405","method":"POST","uri":"/","body_bytes":556,"referer":"","ua":"Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/81.0.4044.129 Safari/537.36","accept_encoding":"gzip, deflate","request_time":0.0,"if_none_match":"","cache":"","upstream_http_cache_status":"","upstream_cache_status":"","runtime":"","response_time":"","vhost":"52.194.34.45","request_id":"b439ce68614a04b9fd0b5eedbcbd578b"}
{"time":"03/Dec/2023:15:52:06 +0000","host":"135.125.246.110","forwardedfor":"","req":"GET /.env HTTP/1.1","status":"404","method":"GET","uri":"/.env","body_bytes":552,"referer":"","ua":"Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/81.0.4044.129 Safari/537.36","accept_encoding":"gzip, deflate","request_time":0.0,"if_none_match":"","cache":"","upstream_http_cache_status":"","upstream_cache_status":"","runtime":"","response_time":"","vhost":"52.194.34.45","request_id":"197efd02bf817cb93dfbe86997f9a30a"}
{"time":"03/Dec/2023:15:45:10 +0000","host":"192.168.0.10","forwardedfor":"","req":"POST /api/register HTTP/2.0","status":"499","method":"POST","uri":"/api/register","body_bytes":0,"referer":"","ua":"isucandar","accept_encoding":"gzip, deflate, br","request_time":0.108,"if_none_match":"","cache":"","upstream_http_cache_status":"","upstream_cache_status":"","runtime":"","response_time":"0.108","vhost":"pipe.u.isucon.dev","request_id":"be27a6c225b14d6809d283f4c58ec901"}
{"time":"03/Dec/2023:15:45:10 +0000","host":"192.168.0.10","forwardedfor":"","req":"POST /api/icon HTTP/1.1","status":"201","method":"POST","uri":"/api/icon","body_bytes":36,"referer":"","ua":"isucandar","accept_encoding":"gzip, deflate, br","request_time":0.03,"if_none_match":"","cache":"MISS","upstream_http_cache_status":"","upstream_cache_status":"","runtime":"","response_time":"0.028","vhost":"pipe.u.isucon.dev","request_id":"0017a53d64faac5553ab5056d47ccaee"}
{"time":"03/Dec/2023:15:45:10 +0000","host":"192.168.0.10","forwardedfor":"","req":"GET /api/livestream/search?limit=50 HTTP/1.1","status":"499","method":"GET","uri":"/api/livestream/search?limit=50","body_bytes":0,"referer":"","ua":"isucandar","accept_encoding":"gzip, deflate, br","request_time":0.242,"if_none_match":"","cache":"","upstream_http_cache_status":"","upstream_cache_status":"","runtime":"","response_time":"0.242","vhost":"pipe.u.isucon.dev","request_id":"98ce70bdb4fabbfade91a39a70fd4c5b"}
{"time":"03/Dec/2023:15:45:10 +0000","host":"192.168.0.10","forwardedfor":"","req":"GET /api/livestream/7616/statistics HTTP/1.1","status":"499","method":"GET","uri":"/api/livestream/7616/statistics","body_bytes":0,"referer":"","ua":"isucandar","accept_encoding":"gzip, deflate, br","request_time":15.118,"if_none_match":"","cache":"","upstream_http_cache_status":"","upstream_cache_status":"","runtime":"","response_time":"15.118","vhost":"kazuyasato0.u.isucon.dev","request_id":"b89190d4cbec4826bced4ff56aee21ee"}
{"time":"03/Dec/2023:15:45:10 +0000","host":"192.168.0.10","forwardedfor":"","req":"GET /api/user/nfukuda0/statistics HTTP/1.1","status":"499","method":"GET","uri":"/api/user/nfukuda0/statistics","body_bytes":0,"referer":"","ua":"isucandar","accept_encoding":"gzip, deflate, br","request_time":1.088,"if_none_match":"","cache":"","upstream_http_cache_status":"","upstream_cache_status":"","runtime":"","response_time":"1.088","vhost":"pipe.u.isucon.dev","request_id":"6ebf4304989ea56a0660ca3cdbef9f4c"}
{"time":"03/Dec/2023:15:45:10 +0000","host":"192.168.0.10","forwardedfor":"","req":"GET /api/livestream/search?tag=%E6%8A%95%E8%B3%87 HTTP/1.1","status":"499","method":"GET","uri":"/api/livestream/search?tag=%E6%8A%95%E8%B3%87","body_bytes":0,"referer":"","ua":"isucandar","accept_encoding":"gzip, deflate, br","request_time":0.712,"if_none_match":"","cache":"","upstream_http_cache_status":"","upstream_cache_status":"","runtime":"","response_time":"0.712","vhost":"pipe.u.isucon.dev","request_id":"9c40fbd61ccab885aa4876299419910f"}
{"time":"03/Dec/2023:15:45:10 +0000","host":"192.168.0.10","forwardedfor":"","req":"GET /api/livestream/search?limit=50 HTTP/1.1","status":"499","method":"GET","uri":"/api/livestream/search?limit=50","body_bytes":0,"referer":"","ua":"isucandar","accept_encoding":"gzip, deflate, br","request_time":0.696,"if_none_match":"","cache":"","upstream_http_cache_status":"","upstream_cache_status":"","runtime":"","response_time":"0.696","vhost":"pipe.u.isucon.dev","request_id":"ddf88c6da57843a0f447f186d5bea4ed"}
{"time":"03/Dec/2023:15:45:10 +0000","host":"192.168.0.10","forwardedfor":"","req":"GET /api/livestream/7638/reaction HTTP/1.1","status":"499","method":"GET","uri":"/api/livestream/7638/reaction","body_bytes":0,"referer":"","ua":"isucandar","accept_encoding":"gzip, deflate, br","request_time":0.183,"if_none_match":"","cache":"","upstream_http_cache_status":"","upstream_cache_status":"","runtime":"","response_time":"0.183","vhost":"shoheiinoue0.u.isucon.dev","request_id":"527e512f0957a51b37491339bd7eb968"}
```
Nginxのerror.log
```jsonl
{"log":"2023/12/03 15:45:08 [error] 29118#29118: *2011 [lua] isupipe.conf:58):2: 画像にアクセスお試し: /home/isucon/webapp/public/img/$1.jpeg: nil, client: 192.168.0.10, server: u.isucon.dev, request: \"GET /api/user/haruka870/icon HTTP/1.1\", host: \"pipe.u.isucon.dev:443\""}
{"log":"2023/12/03 15:45:08 [error] 29118#29118: *2011 [lua] isupipe.conf:58):2: 画像にアクセスお試し: /home/isucon/webapp/public/img/$1.jpeg: nil, client: 192.168.0.10, server: u.isucon.dev, request: \"GET /api/user/haruka870/icon HTTP/1.1\", host: \"pipe.u.isucon.dev:443\""}
{"log":"2023/12/03 15:45:07 [error] 29117#29117: *2204 [lua] isupipe.conf:58):2: 画像にアクセスお試し: /home/isucon/webapp/public/img/$1.jpeg: nil, client: 192.168.0.10, server: u.isucon.dev, request: \"GET /api/user/aokitaro0/icon HTTP/1.1\", host: \"pipe.u.isucon.dev:443\""}
{"log":"2023/12/03 15:45:07 [error] 29117#29117: *2204 [lua] isupipe.conf:67):2: 画像にアクセスしたけどファイルが無かったよ: /api/user/aokitaro0/icon, client: 192.168.0.10, server: u.isucon.dev, request: \"GET /api/user/aokitaro0/icon HTTP/1.1\", host: \"pipe.u.isucon.dev:443\""}
{"log":"2023/12/03 15:45:07 [error] 29117#29117: *2204 [lua] isupipe.conf:67):2: 画像にアクセスしたけどファイルが無かったよ: /api/user/ishikawakana0/icon, client: 192.168.0.10, server: u.isucon.dev, request: \"GET /api/user/ishikawakana0/icon HTTP/1.1\", host: \"pipe.u.isucon.dev:443\""}
{"log":"2023/12/03 15:45:07 [error] 29117#29117: *2204 [lua] isupipe.conf:58):2: 画像にアクセスお試し: /home/isucon/webapp/public/img/$1.jpeg: nil, client: 192.168.0.10, server: u.isucon.dev, request: \"GET /api/user/ishikawakana0/icon HTTP/1.1\", host: \"pipe.u.isucon.dev:443\""}
{"log":"2023/12/03 15:45:07 [error] 29117#29117: *2204 [lua] isupipe.conf:67):2: 画像にアクセスしたけどファイルが無かったよ: /api/user/nakamurakaori0/icon, client: 192.168.0.10, server: u.isucon.dev, request: \"GET /api/user/nakamurakaori0/icon HTTP/1.1\", host: \"pipe.u.isucon.dev:443\""}
{"log":"2023/12/03 15:45:07 [error] 29117#29117: *2204 [lua] isupipe.conf:58):2: 画像にアクセスお試し: /home/isucon/webapp/public/img/$1.jpeg: nil, client: 192.168.0.10, server: u.isucon.dev, request: \"GET /api/user/nakamurakaori0/icon HTTP/1.1\", host: \"pipe.u.isucon.dev:443\""}
{"log":"2023/12/03 15:45:07 [error] 29118#29118: *2175 [lua] isupipe.conf:58):2: 画像にアクセスお試し: /home/isucon/webapp/public/img/$1.jpeg: nil, client: 192.168.0.10, server: u.isucon.dev, request: \"GET /api/user/mmatsuda0/icon HTTP/1.1\", host: \"pipe.u.isucon.dev:443\""}
{"log":"2023/12/03 15:45:07 [error] 29118#29118: *2175 [lua] isupipe.conf:58):2: 画像にアクセスお試し: /home/isucon/webapp/public/img/$1.jpeg: nil, client: 192.168.0.10, server: u.isucon.dev, request: \"GET /api/user/mmatsuda0/icon HTTP/1.1\", host: \"pipe.u.isucon.dev:443\""}
{"log":"2023/12/03 15:45:07 [error] 29118#29118: *2175 [lua] isupipe.conf:58):2: 画像にアクセスお試し: /home/isucon/webapp/public/img/$1.jpeg: nil, client: 192.168.0.10, server: u.isucon.dev, request: \"GET /api/user/mmatsuda0/icon HTTP/1.1\", host: \"pipe.u.isucon.dev:443\""}
```
isupipe-goのアプリケーションログ
isupipe-goのログにはエラーログやアクセスログを含みます。
```jsonl
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.363324152Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"pipe.u.isucon.dev\",\"method\":\"GET\",\"uri\":\"/api/livestream/search?limit=50\",\"user_agent\":\"isucandar\",\"status\":200,\"error\":\"\",\"latency\":754920938,\"latency_human\":\"754.920938ms\",\"bytes_in\":0,\"bytes_out\":63552}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.358528846Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"bhasegawa0.u.isucon.dev\",\"method\":\"GET\",\"uri\":\"/api/livestream/7632/livecomment\",\"user_agent\":\"isucandar\",\"status\":200,\"error\":\"\",\"latency\":159586020,\"latency_human\":\"159.58602ms\",\"bytes_in\":0,\"bytes_out\":28448}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.348991333Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"pipe.u.isucon.dev\",\"method\":\"GET\",\"uri\":\"/api/livestream/search?limit=50\",\"user_agent\":\"isucandar\",\"status\":200,\"error\":\"\",\"latency\":732721964,\"latency_human\":\"732.721964ms\",\"bytes_in\":0,\"bytes_out\":63552}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.336478879Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"pipe.u.isucon.dev\",\"method\":\"POST\",\"uri\":\"/api/icon\",\"user_agent\":\"isucandar\",\"status\":201,\"error\":\"\",\"latency\":43030348,\"latency_human\":\"43.030348ms\",\"bytes_in\":123696,\"bytes_out\":16}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.334189182Z\",\"level\":\"DEBUG\",\"prefix\":\"echo\",\"file\":\"user_handler.go\",\"line\":\"181\",\"message\":\"ファイルを削除 : filename=/home/isucon/webapp/public/img/hiroshiyoshida1.jpeg\"}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.323442779Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"vkobayashi0.u.isucon.dev\",\"method\":\"GET\",\"uri\":\"/api/livestream/7552/reaction?limit=10\",\"user_agent\":\"isucandar\",\"status\":200,\"error\":\"\",\"latency\":64429139,\"latency_human\":\"64.429139ms\",\"bytes_in\":0,\"bytes_out\":9963}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.31673288Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"shoheiinoue0.u.isucon.dev\",\"method\":\"GET\",\"uri\":\"/api/livestream/7638/reaction\",\"user_agent\":\"isucandar\",\"status\":200,\"error\":\"\",\"latency\":199664973,\"latency_human\":\"199.664973ms\",\"bytes_in\":0,\"bytes_out\":18036}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.313961761Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"satomikobayashi0.u.isucon.dev\",\"method\":\"POST\",\"uri\":\"/api/livestream/7648/reaction\",\"user_agent\":\"isucandar\",\"status\":201,\"error\":\"\",\"latency\":19553756,\"latency_human\":\"19.553756ms\",\"bytes_in\":22,\"bytes_out\":1858}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.309699408Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"pipe.u.isucon.dev\",\"method\":\"POST\",\"uri\":\"/api/register\",\"user_agent\":\"isucandar\",\"status\":201,\"error\":\"\",\"latency\":112108320,\"latency_human\":\"112.10832ms\",\"bytes_in\":364,\"bytes_out\":480}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.308750543Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"satomigoto0.u.isucon.dev\",\"method\":\"POST\",\"uri\":\"/api/livestream/7646/livecomment\",\"user_agent\":\"isucandar\",\"status\":201,\"error\":\"\",\"latency\":44676147,\"latency_human\":\"44.676147ms\",\"bytes_in\":77,\"bytes_out\":1896}"}
{"MESSAGE":"pam_unix(sudo:session): session closed for user root"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.300018152Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"pipe.u.isucon.dev\",\"method\":\"POST\",\"uri\":\"/api/icon\",\"user_agent\":\"isucandar\",\"status\":201,\"error\":\"\",\"latency\":24474770,\"latency_human\":\"24.47477ms\",\"bytes_in\":132684,\"bytes_out\":16}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.291358999Z\",\"level\":\"DEBUG\",\"prefix\":\"echo\",\"file\":\"user_handler.go\",\"line\":\"189\",\"message\":\"ファイルが存在しないのでなにもしない: filename=/home/isucon/webapp/public/img/mfujiwara0.jpeg\"}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.287800587Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"satomikobayashi0.u.isucon.dev\",\"method\":\"GET\",\"uri\":\"/api/livestream/7648/reaction\",\"user_agent\":\"isucandar\",\"status\":200,\"error\":\"\",\"latency\":62967361,\"latency_human\":\"62.967361ms\",\"bytes_in\":0,\"bytes_out\":3955}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.273964726Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"rikasuzuki0.u.isucon.dev\",\"method\":\"POST\",\"uri\":\"/api/livestream/reservation\",\"user_agent\":\"isucandar\",\"status\":201,\"error\":\"\",\"latency\":92325991,\"latency_human\":\"92.325991ms\",\"bytes_in\":337,\"bytes_out\":1177}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.260031825Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"pipe.u.isucon.dev\",\"method\":\"POST\",\"uri\":\"/api/login\",\"user_agent\":\"isucandar\",\"status\":200,\"error\":\"\",\"latency\":12243593,\"latency_human\":\"12.243593ms\",\"bytes_in\":49,\"bytes_out\":0}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.247607728Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"satomigoto0.u.isucon.dev\",\"method\":\"GET\",\"uri\":\"/api/livestream/7646/livecomment\",\"user_agent\":\"isucandar\",\"status\":200,\"error\":\"\",\"latency\":130710572,\"latency_human\":\"130.710572ms\",\"bytes_in\":0,\"bytes_out\":10225}"}
{"MESSAGE":"pam_unix(sudo:session): session opened for user root(uid=0) by (uid=1100)"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.246331855Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"vkobayashi0.u.isucon.dev\",\"method\":\"GET\",\"uri\":\"/api/livestream/7552/livecomment?limit=10\",\"user_agent\":\"isucandar\",\"status\":200,\"error\":\"\",\"latency\":158803356,\"latency_human\":\"158.803356ms\",\"bytes_in\":0,\"bytes_out\":10308}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.244247877Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"pipe.u.isucon.dev\",\"method\":\"POST\",\"uri\":\"/api/register\",\"user_agent\":\"isucandar\",\"status\":201,\"error\":\"\",\"latency\":99137320,\"latency_human\":\"99.13732ms\",\"bytes_in\":361,\"bytes_out\":477}"}
{"MESSAGE":" isucon : PWD=/home/isucon/webapp/go ; USER=root ; COMMAND=/usr/bin/pdnsutil add-record u.isucon.dev yamaguchiharuka0 A 0 192.168.0.11"}
{"MESSAGE":"pam_unix(sudo:session): session closed for user root"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.192758178Z\",\"level\":\"INFO\",\"prefix\":\"echo\",\"file\":\"livestream_handler.go\",\"line\":\"118\",\"message\":\"1704337200 ~ 1704340800予約枠の残数 = 4\\n\"}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.188325909Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"pipe.u.isucon.dev\",\"method\":\"POST\",\"uri\":\"/api/icon\",\"user_agent\":\"isucandar\",\"status\":201,\"error\":\"\",\"latency\":67230540,\"latency_human\":\"67.23054ms\",\"bytes_in\":73504,\"bytes_out\":16}"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.183425959Z\",\"level\":\"DEBUG\",\"prefix\":\"echo\",\"file\":\"user_handler.go\",\"line\":\"189\",\"message\":\"ファイルが存在しないのでなにもしない: filename=/home/isucon/webapp/public/img/atsushi200.jpeg\"}"}
{"MESSAGE":"pam_unix(sudo:session): session opened for user root(uid=0) by (uid=1100)"}
{"MESSAGE":" isucon : PWD=/home/isucon/webapp/go ; USER=root ; COMMAND=/usr/bin/pdnsutil add-record u.isucon.dev mfujiwara0 A 0 192.168.0.11"}
{"MESSAGE":"{\"time\":\"2023-12-03T15:45:10.173413514Z\",\"id\":\"\",\"remote_ip\":\"127.0.0.1\",\"host\":\"satomikobayashi0.u.isucon.dev\",\"method\":\"GET\",\"uri\":\"/api/livestream/7648/livecomment\",\"user_agent\":\"isucandar\",\"status\":200,\"error\":\"\",\"latency\":69052170,\"latency_human\":\"69.05217ms\",\"bytes_in\":0,\"bytes_out\":4207}"}
{"MESSAGE":"[ERROR] remote upload queue is full, dropping a profile job"}
{"MESSAGE":"[ERROR] remote upload queue is full, dropping a profile job"}
{"MESSAGE":"[DEBUG] profiling session reset 2023-12-03 15:45:47.52292662 +0000 UTC m=+120.004947896"}
{"MESSAGE":"2023/12/03 15:45:52 traces export: context deadline exceeded: retry-able request failure"}
{"MESSAGE":"[DEBUG] profiling session reset 2023-12-03 15:45:32.524990214 +0000 UTC m=+105.007011490"}
{"MESSAGE":"[DEBUG] content type: multipart/form-data; boundary=6a0058274a590a9542fd811b4d9cd4a07502d6464486acfc9a6f7f29fa02"}
{"MESSAGE":"[DEBUG] uploading at http://monitoring:4040/ingest?aggregationType=&from=1701618272&name=calculator%7B__session_id__%3Dd031bf497c418be5%2Chostname%3Disuports%7D&sampleRate=100&spyName=gospy&units=&until=1701618287"}
{"MESSAGE":"[ERROR] upload profile: do http request: Post \"http://monitoring:4040/ingest?aggregationType=&from=1701618257&name=calculator%7B__session_id__%3Dd031bf497c418be5%2Chostname%3Disuports%7D&sampleRate=100&spyName=gospy&units=&until=1701618272\": context deadline exceeded (Client.Timeout exceeded while awaiting headers)"}
{"MESSAGE":"[DEBUG] content type: multipart/form-data; boundary=14ed36b29bdadfbbe8b4f0b9b70349417c099d0bd35c8d07785d3a74f32e"}
{"MESSAGE":"[ERROR] upload profile: do http request: Post \"http://monitoring:4040/ingest?aggregationType=average&from=1701618257&name=calculator%7B__session_id__%3Dd031bf497c418be5%2Chostname%3Disuports%7D&sampleRate=0&spyName=gospy&units=goroutines&until=1701618272\": context deadline exceeded (Client.Timeout exceeded while awaiting headers)"}
{"MESSAGE":"[DEBUG] uploading at http://monitoring:4040/ingest?aggregationType=average&from=1701618272&name=calculator%7B__session_id__%3Dd031bf497c418be5%2Chostname%3Disuports%7D&sampleRate=0&spyName=gospy&units=goroutines&until=1701618287"}
{"MESSAGE":"[DEBUG] uploading at http://monitoring:4040/ingest?aggregationType=sum&from=1701618272&name=calculator%7B__session_id__%3Dd031bf497c418be5%2Chostname%3Disuports%7D&sampleRate=100&spyName=gospy&units=samples&until=1701618287"}
{"MESSAGE":"[ERROR] upload profile: do http request: Post \"http://monitoring:4040/ingest?aggregationType=sum&from=1701618257&name=calculator%7B__session_id__%3Dd031bf497c418be5%2Chostname%3Disuports%7D&sampleRate=100&spyName=gospy&units=samples&until=1701618272\": context deadline exceeded (Client.Timeout exceeded while awaiting headers)"}
{"MESSAGE":"[DEBUG] profiling session reset 2023-12-03 15:45:17.523979146 +0000 UTC m=+90.006000423"}
{"MESSAGE":"2023/12/03 15:45:22 traces export: context deadline exceeded: retry-able request failure"}
{"MESSAGE":"[DEBUG] profiling session reset 2023-12-03 15:45:02.527283967 +0000 UTC m=+75.009305249"}
```
pattern queryの実行

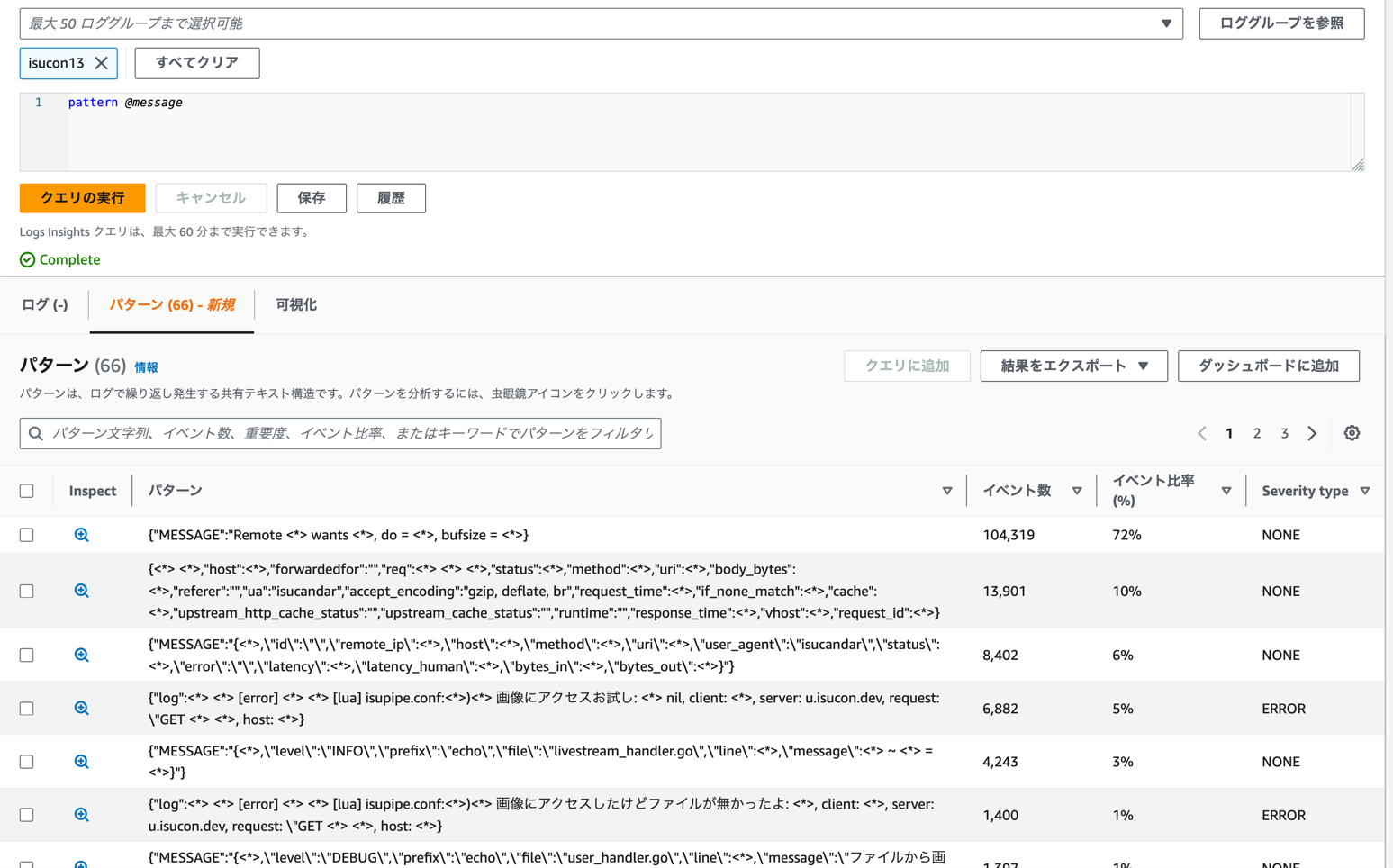

上記のようなログに対して pattern queryを叩くと、以下のような結果が得られます。
pattern @message
自動的にパターンを解析した結果とイベント数、比率、ログレベルから勝手に分類してくれるSeverity typeが表示されています。

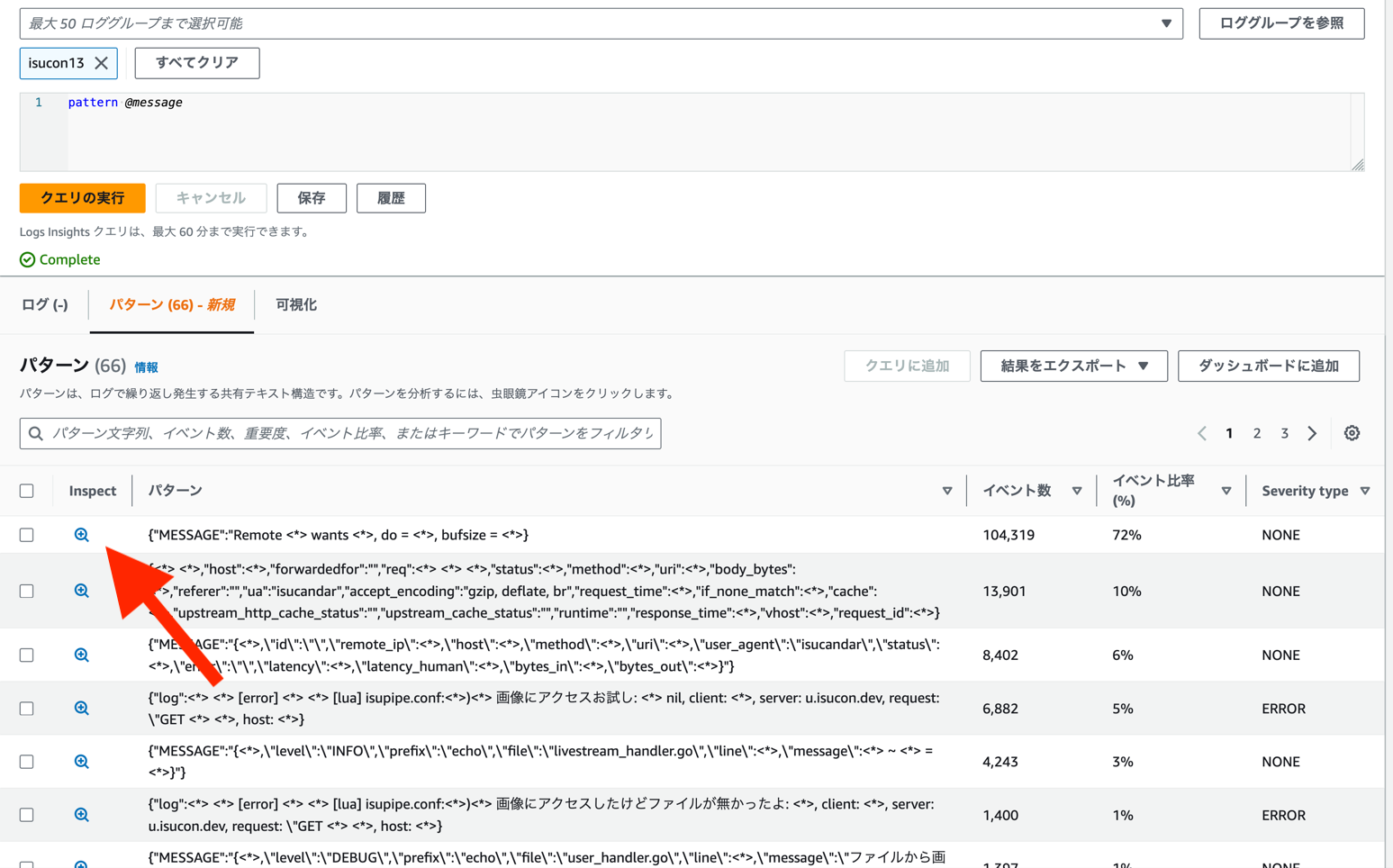

左にあるInspectをクリックすると、パターンを解析した結果の詳細を見ることができます。

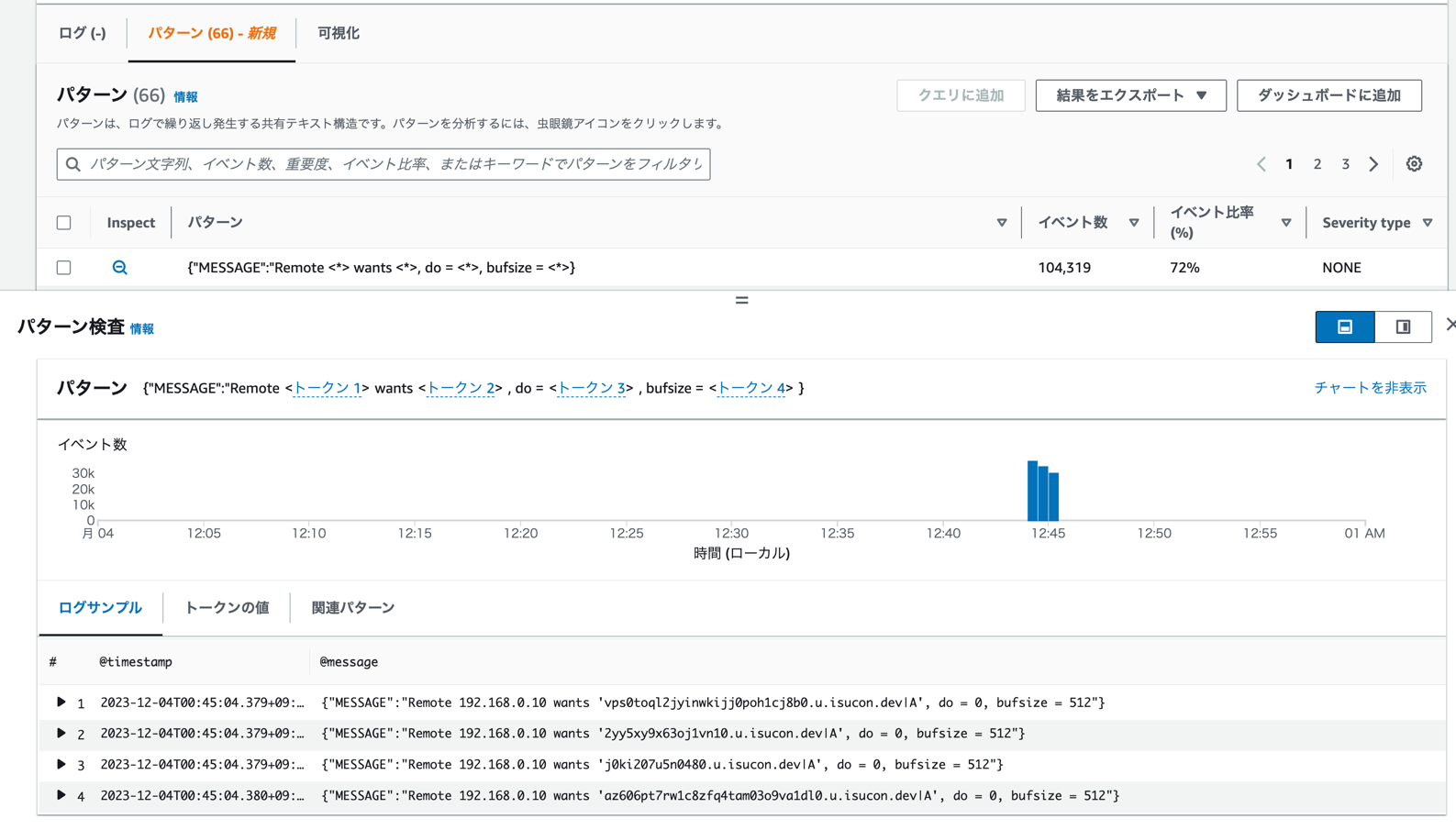

クラスター化されたログのサンプルが見れる
タブからログのサンプルを確認できるのはとても便利ですね。
集計結果から生のログを見れるのは個人的にとても評価が高いです。

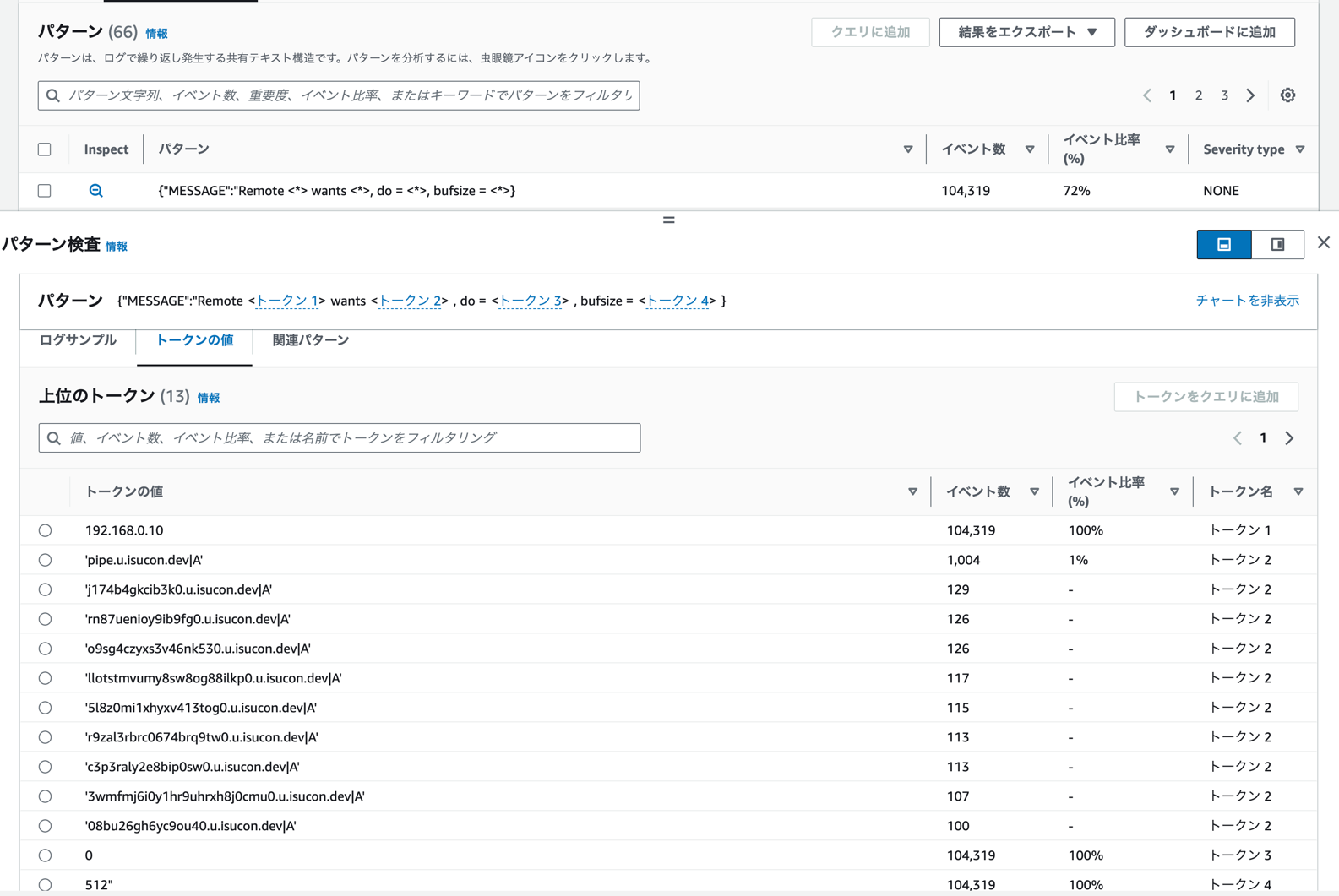

クラスター化されたトークンの集計とサンプルが見れる
トークンにどんな値が入っているかの集計も見ることができます。
ISUCONで使うなら特定のパラメーター（今回でいうとサブドメイン）のリクエストが偏ってないかなどの確認に役立つと思います。

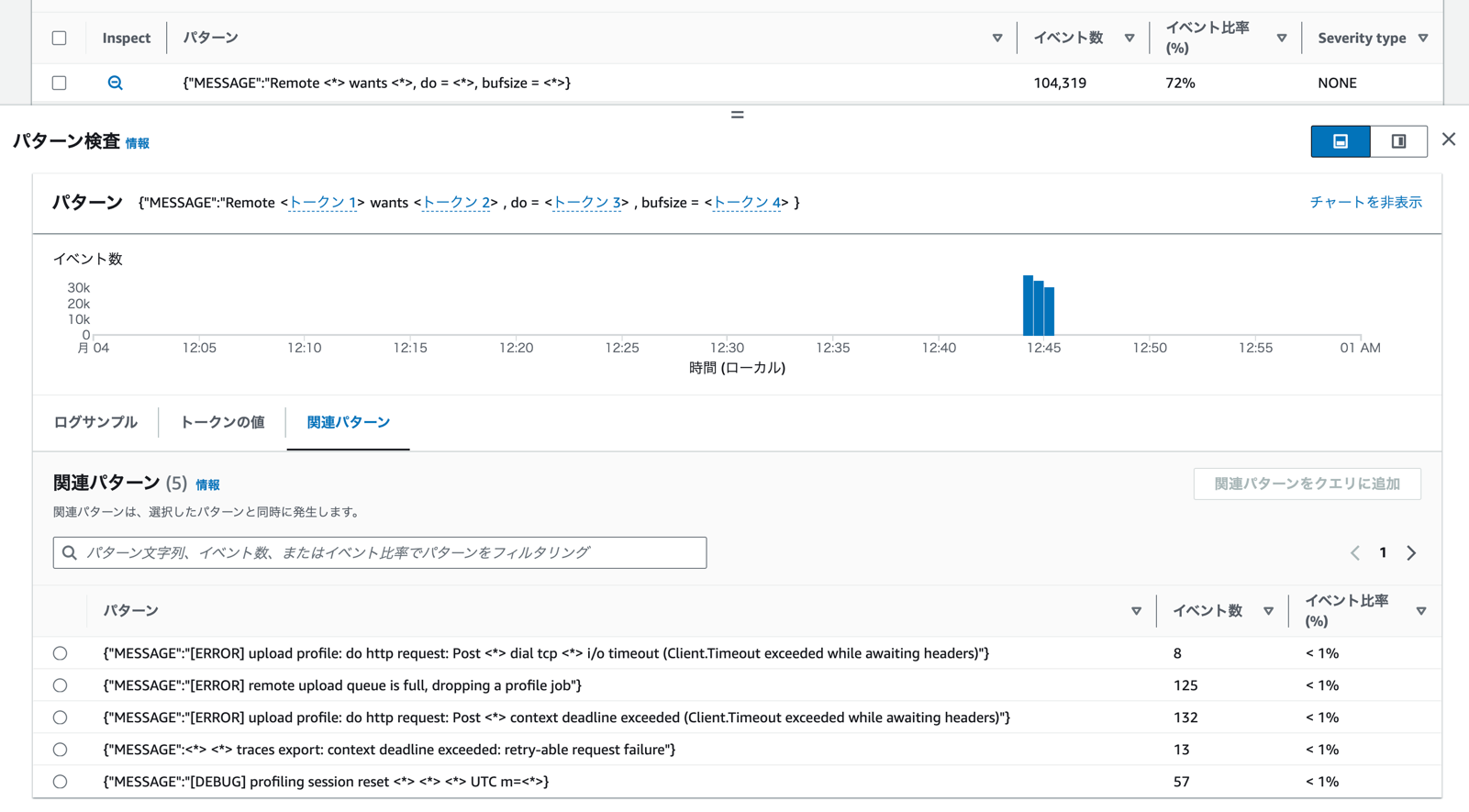

関連するログを見ることができる
このログが出力されたときに関連してどのようなログが吐かれていたか確認することもできます。
複数のアプリケーションやコンポーネント間でログの関連性が見えるようになるのでとてもよいですね。
料金
pattern query自体の料金は通常のCloudWatch Logs Insightsと同じでスキャン量課金です（スキャンしたデータ 1 GB あたり 0.0076USD）。
その他、データの取り込みに0.76USD/GBかかります。
参考: https://aws.amazon.com/jp/cloudwatch/pricing/

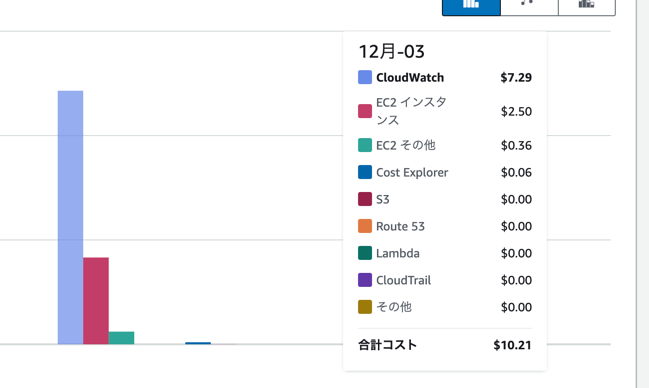

自分がISUCON13の感想戦環境で試したときは15回ほどベンチを回したときのログの取り込み量は15GBでした。（途中誤ってjournaldのログをすべて取り込んでいたのでここまでの増え方はしないかもしれないです）
ベンチごとに何度かpattern queryを叩いていたと思いますが、請求額は7.6USDほどでした。
無料枠分計算がずれていますがほとんどがデータの取り込み料だと思われます。
クエリを叩く分にはスキャン範囲に気をつければ気にするほどのコストにはならないのではないでしょうか。
クエリのスキャン量を減らすためには、日時範囲を狭めたり、そもそもエラーログのみをCloudWatch Logsに取り込むようにすると良いかもしれませんね。
まとめ
集計クエリを都度書かなくても自動でパターンを分類して集計されるのはとても便利でした。
jsonなどで構造化されてなくても雑に分析できるのは使い勝手がよいですね。
ISUCONで使うなら、エラーログのみをCloudWatch Logsに取り込むようにしておいて、pattern queryでエラーの集計を見ると良いかもしれません。
また、個人的にAWSのリリース方法が面白いなと思いました。先にクエリだけリリースしてアーリーアダプターを引き込みつつ、効果が実証されたらクエリを知らない人でも使いやすいようにUIを用意するというのは意図があったかはわからないですが参考にしようと思います。
おまけ
ISUCONのログはfluent-bitでCloudWatch Logsに送っていました。conf類を置いていおくので参考にしたい方はどうぞ。
fluent-bitの設定ファイルなど
```console
$ find /etc/fluent-bit/
/etc/fluent-bit/
/etc/fluent-bit/parsers.conf
/etc/fluent-bit/fluent-bit.conf
/etc/fluent-bit/plugins.conf
```
```console
$ cat /etc/fluent-bit/fluent-bit.conf
[SERVICE]
flush 10
daemon Off
log_level info
parsers_file parsers.conf
plugins_file plugins.conf
[INPUT]
Name systemd
Tag host.*
Systemd_Filter _SYSTEMD_UNIT=isupipe-go.service
Read_From_Tail On
[INPUT]
Name systemd
Tag host.*
Systemd_Filter _SYSTEMD_UNIT=pdns.service
Read_From_Tail On
[FILTER]
Name record_modifier
Match host.*
Allowlist_key MESSAGE
[OUTPUT]
Name cloudwatch_logs
Match host.*
region ap-northeast-1
log_group_name isucon13
log_stream_prefix ${HOSTNAME}.
auto_create_group On
[INPUT]
Name tail
Path /home/isucon/log/nginx/access.log
Parser json
Tag nginx.access.log
[INPUT]
Name tail
Path /home/isucon/log/nginx/error.log
Tag nginx.error.log
[OUTPUT]
Name cloudwatch_logs
Match nginx.*
region ap-northeast-1
log_group_name isucon13
log_stream_prefix ${HOSTNAME}.
auto_create_group On
```
```console
$ cat /etc/fluent-bit/parsers.conf
[PARSER]
Name json
Format json
Time_Key time
Time_Format %Y-%m-%dT%H:%M:%S.%LZ
```
```console
$ cat /etc/fluent-bit/plugins.conf
[PLUGINS]
# Path /path/to/out_gstdout.so
```
```console
$ sudo systemctl cat fluent-bit.service
# /lib/systemd/system/fluent-bit.service
[Unit]
Description=Fluent Bit
Documentation=https://docs.fluentbit.io/manual/
Requires=network.target
After=network.target
[Service]
Type=simple
EnvironmentFile=-/etc/sysconfig/fluent-bit
EnvironmentFile=-/etc/default/fluent-bit
EnvironmentFile=-/home/isucon/awsenv.sh
ExecStart=/opt/fluent-bit/bin/fluent-bit -c //etc/fluent-bit/fluent-bit.conf
Restart=always
[Install]
WantedBy=multi-user.target
```
```console
$ cat awsenv.sh
AWS_ACCESS_KEY_ID=XXXXXXXXXXXXXXXXXXX
AWS_SECRET_ACCESS_KEY=xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
```
